The Astronomia is the epitome of 21st century haute horlogerie and a globally recognized symbol of Jacob & Co watchmaking expertise. A world-first both in the boldness of its unprecedented concept and its entirely mechanical construction, the Astronomia has gone beyond impressive horological achievements and has been regarded as an outstanding multidisciplinary engineering achievement.
The Astronomia Sky introduces new complications of celestial inspiration to Astronomia: a sidereal display, vertical month display, zodiac signs, day and night indication, as well as a celestial panorama, orbital second indication and a Jacob-Cut® diamond Moon have all been added to fully transform the iconic Astronomia. Full of unparalleled watchmaking solutions and adorned with exceptional finishing techniques, the Astronomia Sky is a poetic and singular entity in ultra-high-end watchmaking.
EXCLUSIVE ASTRONOMIA CALIBER
The Astronomia Sky stays true to the original layout of the Astronomia’s iconic caliber construction: the entire four-arm assembly of its Exclusive JCAM11 Caliber rotates, a truly unprecedented engineering and watchmaking achievement that is as spectacular, as challenging it is to realize. Its four rotating arms and the complications they carry all float through the space between its front sapphire crystal and blued Titanium celestial dial.
The four arms of the Astronomia Sky carry the gravitational triple-axis tourbillon that is the timekeeping organ of the watch, the orbital, double-axis, vertical seconds indication, an exclusive Jacob-Cut® 1-carat diamond, and a differential-leveled time display. This four-arm assembly completes a rotation around the center of the watch in 20 minutes. Another outstanding feature of the Astronomia Sky is how each pair of opposing arms are perfectly calculated counterweights of one another – a testament to peerless materials engineering and watch movement design. By having equal weights on these opposing arms, its axles are relieved from strain and increased pull, as the movement takes up different orientations in space.
Whereas the tourbillon was originally invented to be a single-axis, rotating cage to carry the regulating organ of a mechanical pocket watch for improved timekeeping performance, the Astronomia Sky brings this 224-year-old invention to breathtaking levels of modern refinement and complexity.
The triple-axis tourbillon of the Astronomia Sky is at the forefront of ultra-high-end watchmaking. Its delicately decorated cage encapsulates the balance wheel, hairspring, escape wheel and a number of other crucially important components. Characterized by this openworked cage, this exotic tourbillon rotates on three axes simultaneously. It is a constellation of superbly finished components that, when assembled and fine-tuned expertly, allows the JCAM11 to keep accurate time throughout its 60-hour power reserve.
A full rotation on the 1st axis takes exactly 60 seconds, as a nod towards the traditional single-axis tourbillon. The 2nd axis of rotation requires 5 minutes to complete, while the 3rd axis of rotation is made possible by the 20-minute, four-arm rotating platform of the Astronomia Sky. This makes for a bold new look at how tourbillons can function, when engineered with cutting-edge, ultra-modern technologies and timeless horological heritage in mind.
ASTRONOMIA SKY PLATINUM 950 VIDEO
At the center of the movement, a lacquered hand-engraved titanium globe rotates on itself in 24 hours, inside a tinted half-domed sapphire crystal, showing night and day.
CELESTIAL PANORAMA, SIDEREAL DISPLAY & ASTRONOMICAL INDICATIONS
The Astronomia Sky brings a host of uniquely executed astronomical complications into the extremely complex world of Astronomia. Apart from the day-night indication that works as a shield around the globe in the center of the dial, these features are implemented on the Celestial Dial that is spread out behind the four rotating arms.
A view on the celestial vault through zodiac signs can be admired in hues of mesmerizing blue and gold: this delicately patterned dial makes a full rotation in exactly one sidereal year. On the periphery of this indication are the twelve months, turning this into a month display of unprecedented elegance and complexity. Over the blue Celestial Dial the oval sky indication is located: with its moving oval outline it shows the portion of the stars visible from the Northern hemisphere at any given time.
288-FACET JACOB-CUT DIAMOND
The Jacob-Cut diamond starts out as a much larger rough diamond. First, a rough diamond big enough has to be found, and the purity, clarity, and color has to be of the highest quality both inside and out, and there can be no inclusions. If they start to cut the diamond and find an inclusion, the entire piece will be ruined.
Next, the diamond is cut by machine into a round shape, close in size to the final diamond.
Then, the gem cutter shapes the stone by hand, cutting each individual facet (of 288). This has to be done slowly and carefully, as the stone has to be perfectly round and symmetrical. The danger is that the stone will become oblong and not round. To be used in the Astronomia Collection, the Jacob-cut diamond has to be completely round and weigh exactly as much as the other three satellites (time display, triple-axis tourbillon, magnesium globe).
During the process, if the gem cutter puts slightly too much pressure while adding the facets, too much of the diamond will be cut away, and the ball will end up smaller than the desired diameter. The cutting process takes at least two weeks of dedicated, painstaking work.
To make the final one-carat, Jacob-cut diamond with 288 facets, more than half of the initial rough diamond will be cut away.
The complexity of cutting the 288 facets by hand and making sure everything is symmetrical and the diamond is absolutely round, is what makes the Jacob & Co. diamond used in the Astronomia collection so special.
CASE & CRYSTAL
The Astronomia Sky’s case measures 47 millimeters in diameter and 25 millimeters thick between the highest point of its specially curved front sapphire crystal and the lowest point of its case. Its 18K Rose Gold case holds a single-piece sapphire crystal window around its periphery, allowing for unhindered viewing of the spectacular caliber inside. One’s focus on the universe that lives inside the Astronomia Sky is further assisted by the openworked lugs – a minute, yet important detail that drives ones vision towards the center of the timepiece.
DIAL & HANDS
The time display sub-dial of the Astronomia Sky is driven through an infinitesimal differential system that allows it to always remain levelled and hence perfectly legible, even as the movement’s four-armed platform performs its continuous, 20-minute orbit. The Roman numerals on the skeletonized dial are hand-engraved and filled with black lacquer, while the hand-finished hands appear in gun blue metallic.
ASTRONOMIA SKY APP
In the past, setting an astronomical watch has been laborious, and often involved making a trip to the watchmaker to set it correctly. To make things easier, Jacob & Co. has created a simple yet ingenious solution to the time setting of this complicated watch. The company created a simple app for smartphones that determines where you are in the world, then guides you through the setting of the watch. The Astronomia Sky has two lift-out bows and two notched wheels on the back of the watch, making time setting very easy for the user. One bow is for setting the time and the day/night indicator (both based on 24-hour solar time), while the other bow is for winding the mechanical movement. One wheel is to set the sidereal time, while the other wheel is to set the oval sky indicator – and you will be guided through the setting process by the app.

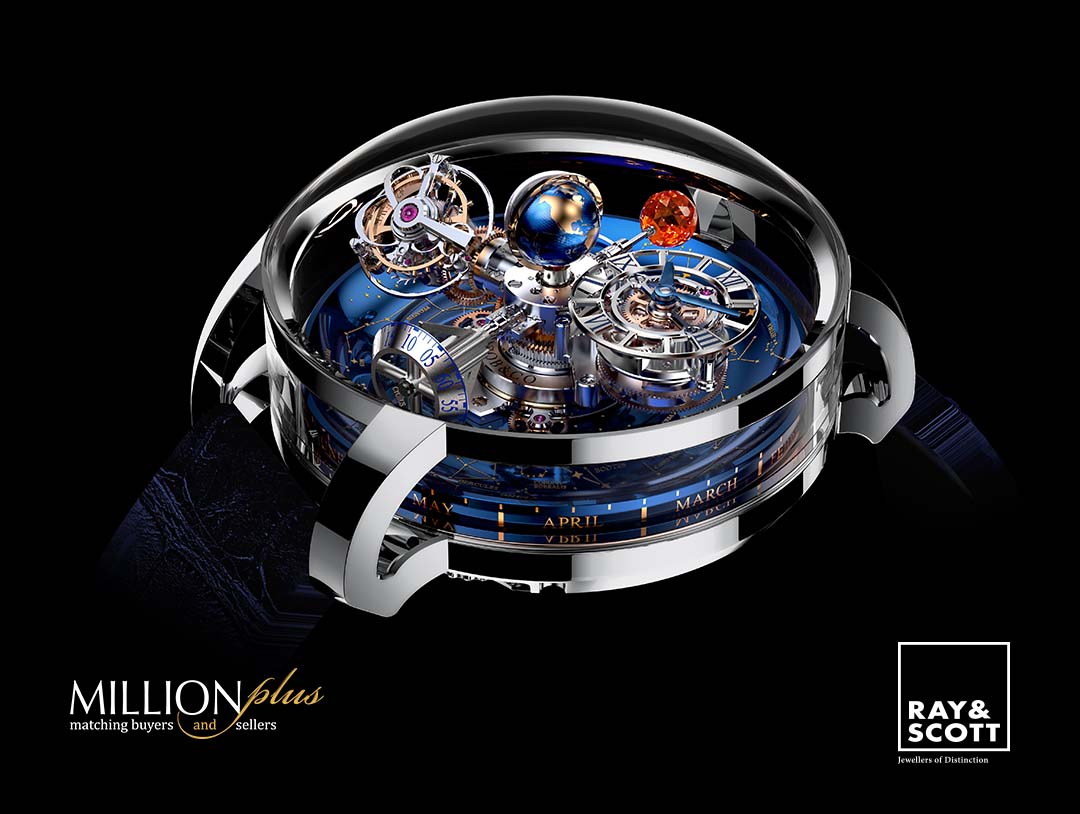

ITEM NUMBER: AT110.30.AA.SD.A
Movement: Manufacture Jacob&Co. Manual Winding JCAM11; Diameter: 40mm; Height: 17.15mm; Components: 395; Material: Titanium; Jewels: 42; System: Triple Axis Gravitational Tourbillon; Finishing: Plate and Bridges: Hand Angled and Polished, Flank Draw, Circular Graining, Polished Sink; Polished Screws; Power Reserve: 60-Hours; Frequency: 21’600 vib/h (3 Hz).
Celestial Dial covering the internal surface of the inside case, representing the celestial vault through zodiac signs
A full rotation in 1 sidereal year1 counter clockwise.
Oval sky indication: Showing the portion of the stars visible from the northern hemisphere, a full rotation clockwise in 1 sidereal day2 above the celestial vault.
Month indication: 12 months on sides of the celestial dial: indication index at 6 o’clock.
DAY AND NIGHT INDICATION
Lacquered hand-engraved titanium globe, rotating on 2 axes:
• 1st Axis: A full rotation on itself in 24 hours;
• 2nd Axis: Central Axe, travelling across the celestial vault in 20 minutes; Inside a tinted half-domed sapphire, symbolizing night and day.
GRAVITATIONAL TRIPLE AXIS TOURBILLON
Rotating on 3 axes:
• 1st Axis: in 60 seconds,
• 2nd Axis: in 5 minutes,
• 3rd Axis: Central Axe, travelling across the celestial vault in 20 minutes;
ORBITAL SECOND INDICATION
Rotating on 2 axes:
• 1st Axis: in 60 seconds,
• 2nd Axis: Central Axe, travelling across the celestial vault in 20 minutes Open Worked Titanium Wheel and Hand indicating seconds;
HOUR & MINUTE INDICATION
Patented differential system; Rotating on a Central Axe, travelling across the celestial vault in 20 minutes;
THE JACOB CUT ORANGE SAPPHIRE
Weight: 1 carat; 288 Facets Jacob-cut Orange Sapphire Rotating on 2 axes:
• 1st Axis in 60 seconds;
• 2nd Axis: Central Axe, travelling across the celestial vault in 20 minutes.
Case: 47mm; Thickness: 25mm; Material: Platinum 950; Sapphire Apertures on Sides; Case Back: Platinum 950; Bows: Platinum 950 lift- out Rotating “bows” for Winding, Time-Setting; two Wheel on Caseback Sides for Synchronization of the Sidereal Time: Celestial Dial and Oval Sky Indicator. Crystal: Unique Domed Sapphire with Anti-Reflective Treatment; Water resistance: 30m (ISO 2281).
Dial: Celestial Dial: Blue Grade 5 Titanium, 18K Gold hand-engraved and applied stars and zodiacal signs; Hour and Minute Subdial: Titanium, Hand Angled and Polished, Lacquered Indexes; Differential Gear System; Hands: Hand Finished Blue.
Strap & Clasp: Alligator; Platinum 950 Folding Buckle . Limited Edition: 18 Pieces; Individually Numbered Pieces.
1 One sidereal year is the time it takes the earth to orbit the sun.
2 Sidereal Day= 23.5640916 hours, it is the time it takes the earth to rotate on its axis (relative to vernal equinox).
LIMITED EDITION: 18 pieces
