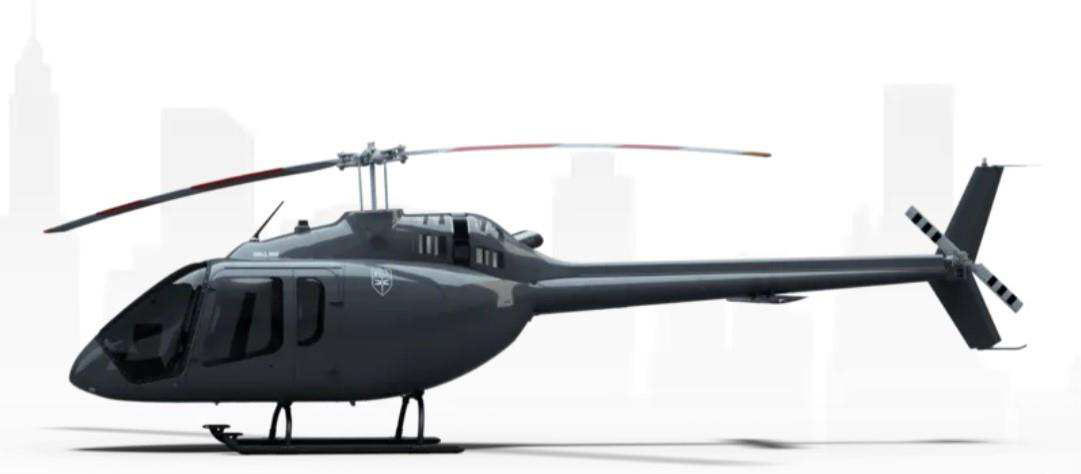

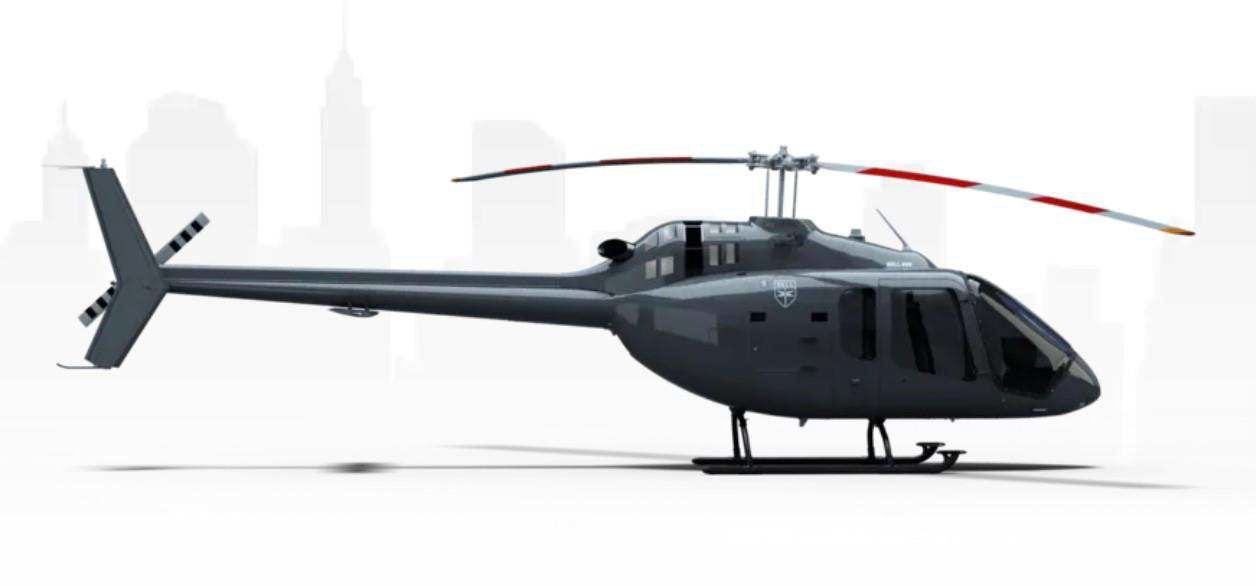

BELL 505 JET RANGER X

Year of Manufacture 2022
Registration TBA
Serial Number TBA
Total Time O hr TTSN
Price Make Offer
Delivery Last Quarter 2022

General Information

Factory New Aircraft – Delivery For Last Quarter 2022
WAAS, ADSB-Out
Avionics Upgrade
Air Conditioning
DART Emergency Floats (to be installed)
Rotor Brake
Inlet Barrier Filter
Dual Controls
Electronic Standby Instruments
Avionics Shelf

Airframe

0 hr TTSN, 0 Landing

Engine

Safran HE Arrius 2R (TBO 3,000 hrs)
Dual-channel FADEC with Automatic Backup
Engine: 0 hr TTSN

Avionics

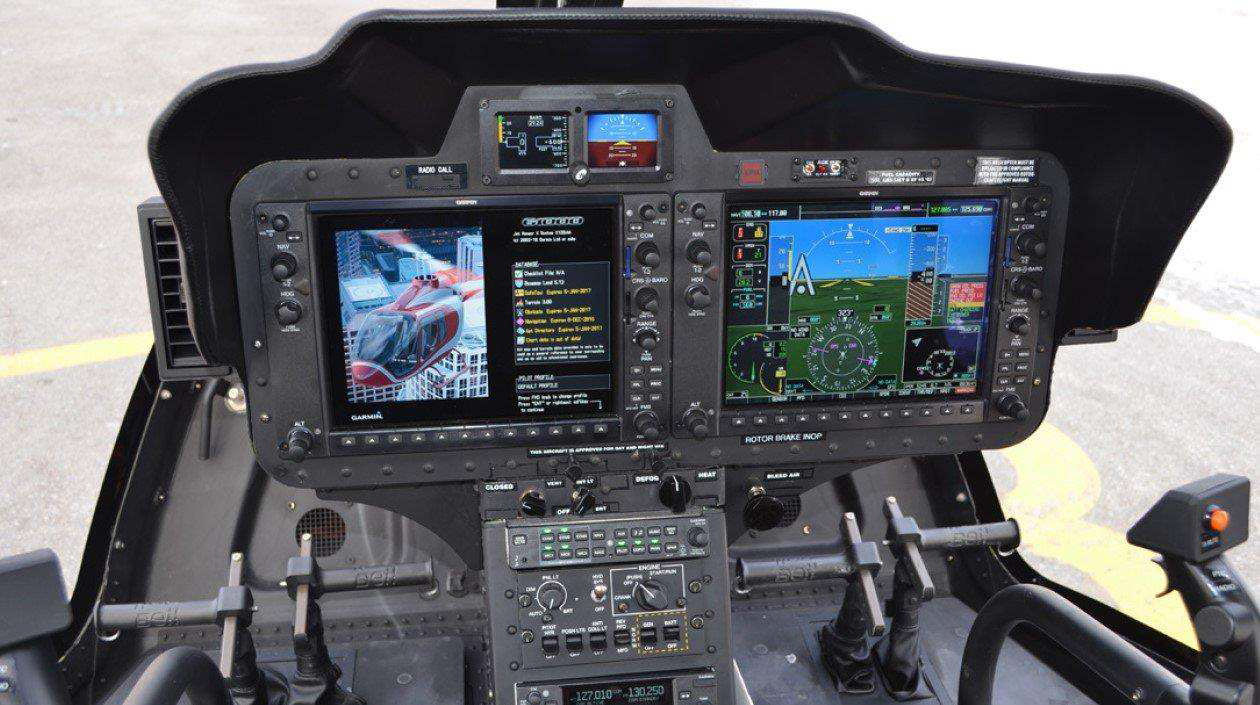

Garmin G1000H™ Integrated Avionics System:

Dual 10.4 inch Displays GDU 1040H, PFD & MFD
GIA 63H Integrated Avionics units including:
— GPS / WAAS Receiver
— VHF COM Transceiver
— VHF NAV and Glideslope Receivers
— Aural Alert Generation

GEA 71H Engine and Airframe Unit
Garmin GMA 350H Audio Panel
Garmin GTX-33H Extended Squitter Mode S XPDR
GSU 75 Air Data Attitude Heading Reference Unit
GMU 44 Magnetometer
Standby Attitude Module (SAM)

Avionics Upgrade:

— Helicopter Synthetic Vision Technology (HSVT)
— Helicopter Terrain Avoidance Warning System (HTAWS)
— GTS 800 TAS (Traffic Advisory System)
Electronic Standby Instruments
Avionics Shelf
ELT

Additional Installed Equipment

Air Conditioning
DART Emergency Floats (to be installed)
Rotor Brake
Inlet Barrier Filter
Dual Controls
Sliding Windows (Pilot & Co-Pilot)
Engine Cowling Access Door
Ground handling wheels (High skid gear or float skid gear)
Ground Handling Carrier bracket (Qty 2)
Operator Accessory Package
Tail Rotor Cover

Interior

2022
1+4 Pax
Seat Configuration 2 + 3
Premium interior (Two Tone tan Leather)
Headliner kit (black with Tan Center)
Color Coordinated Carpet

Exterior

2022
Axalta Catalog — Midway Grey 765418 Ref Value 24
Registration number (Painted)
No stripe
Bell 505 logo — silver (Decal)

*Specifications are subject to verification upon inspection and/or prior sale.
This aircraft is still in production and all pictures displayed are generic.
